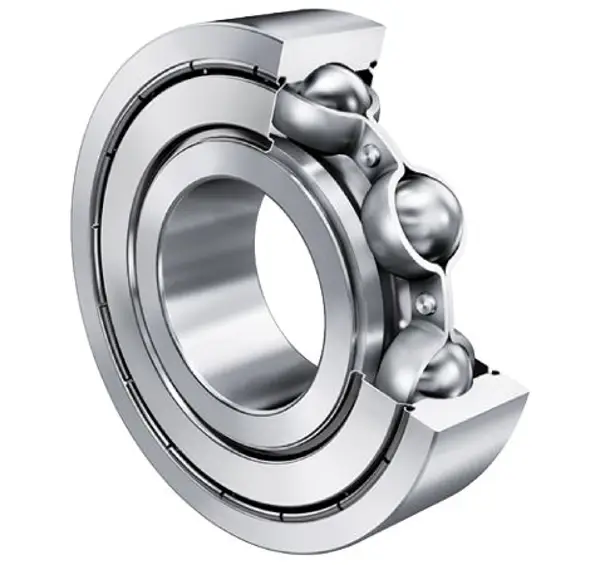

Bearing FAG 6000-C-2Z-C3
- Product code: 0000000057704
- Unit of measurement: Piece
- Tariff group: 84821010
- Net weight: 0.0178 kg
Best price in the last 30 days: 3,72 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 3,72 €
Direct to factory order
DFO – DAP to your place
| Packaging | SIN. |
|---|---|
| Item group | Bearing |
| Subgroup bearing 1 | Ball |
| Subgroup bearing 2 | Single-row |
| Bore diameter d | 10 mm |
| Outside diameter D | 26 mm |
| Width B | 8 mm |
| Sealing type | 2Z |
| Radial clearance | C3 |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Bearing Steel |
| Suffix 1 | C |
| Suffix 1 description | Kroglični ležaji z globokim utorom generacije C, modificirana notranja konstrukcija |
| Suffix 2 | C3 |
| Suffix 2 description | Večja notranja zračnost od običajne |
| Designation | 6000 |
| Basic dynamic load rating | 4.75 kn |
| Basic static load rating | 1.96 kn |
| Designation premium | 6000-C-2Z-C3 |
| System | Metric |
| Limiting speed | 40000 rpm |
| Reference speed | 67000 rpm |
| Oil Seal | Shield on both sides |
