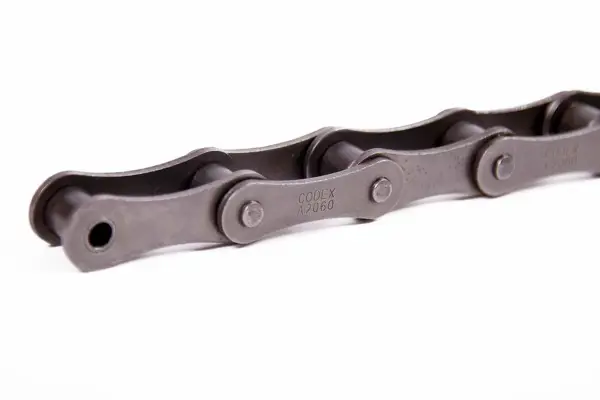

Chain CODEX 12 A-1
- Product code: 0000000020318
- Unit of measurement: Metre
- Tariff group: 7315119000
- Net weight: 1.5 kg
Best price in the last 30 days: 17,33 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 17,33 €
Direct to factory order
DFO – DAP to your place
| Item group | Chain |
|---|---|
| Subgroup chain | A-type galvanized chains |
| Assembly | Simplex |
| Pitch p | 19.05 mm |
| Roller diameter d1 max. | 11.91 mm |
| Designation | 12 A-1 |
| ISO code | 12 A-1 |
| ANSI code | 60-1 |
| System | Metric |
| Width between inner plates b1 min. | 12.7 mm |
| Pin diameter d2 max. | 5.94 mm |
| Ultimate tensile strength Qmin | 31800 n |
| Average tensile strength Qo | 41700 n |
| Weight per M | 1.52 kg |
