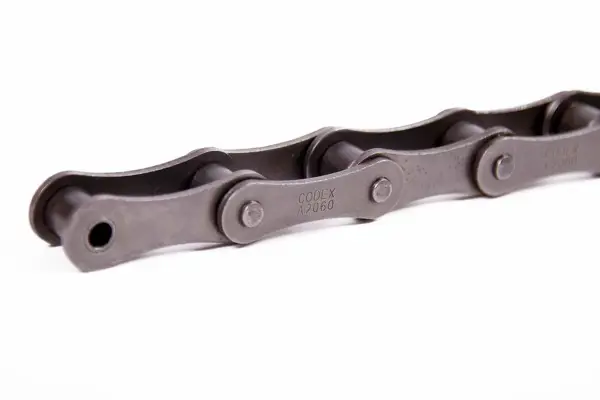

Chain CODEX 24 A-3
- Product code: 0000000020330
- Unit of measurement: Metre
- Tariff group: 7315119000
- Net weight: 17.53 kg
Best price in the last 30 days: 151,36 €
DFO
Direct to factory order
?
DFO
What is DFO?
DFO (Direct to factory order)
- Order directly from the factory at prices below stock, with longer delivery due to production and transport time.
MOQ (minimum order quantity)
- Available only when the specified minimum quantity is ordered.
ETA (Estimated Time of Arrival)
- Production, quality control, and transport time combined.
DAP to your place
ETA:
Best price in the last 30 days: 151,36 €
DFO
Direct to factory order
?
DFO
What is DFO?
DFO (Direct to factory order)
- Order directly from the factory at prices below stock, with longer delivery due to production and transport time.
MOQ (minimum order quantity)
- Available only when the specified minimum quantity is ordered.
ETA (Estimated Time of Arrival)
- Production, quality control, and transport time combined.
DAP to your place
ETA:
| Item group | Chain |
|---|---|
| Subgroup chain | A-type galvanized chains |
| Assembly | Triplex |
| Pitch p | 38.1 mm |
| Roller diameter d1 max. | 22.23 mm |
| Designation | 24 A-3 |
| ISO code | 24 A-3 |
| ANSI code | 120-3 |
| System | Metric |
| Width between inner plates b1 min. | 25.4 mm |
| Pin diameter d2 max. | 11.1 mm |
| Ultimate tensile strength Qmin | 381000 n |
| Average tensile strength Qo | 433900 n |
| Weight per M | 16.67 kg |
