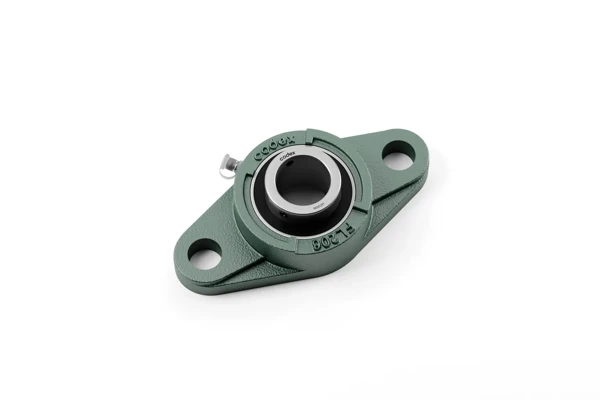

Housed bearing unit CODEX UCFL212 SL
- Product code: 0000000070233
- Unit of measurement: Kos
- Tariff group: 84832000
- Net weight: 3.65 kg
Best price in the last 30 days: 70,95 €
In stock
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 70,95 €
In stock
Direct to factory order
DFO – DAP to your place
| Item group | Housed bearing unit |
|---|---|
| Bore diameter d | 60 mm |
| Width B | 65.1 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Dimension d | 60 mm |
| Total length a | 250 |
| Total width (base) b | 140 |
| Centre of attachment distance e | 202 |
| Material | HT200-Cast Iron |
| Bolt | M20 |
| Flange thickness g | 18 |
| Bearing track centre n | 25,4 |
| Fixing bore s | 23 mm |
| Total height z | 68.7 |
| Distance to raceway center i | 29 |
| Designation | UCFL212 |
| Dimension e | 202 mm |
| Dimension a | 250 mm |
| Dimension b | 140 mm |
| Dimension g | 18 mm |
| Dimension t | 735 mm |
| Dimension B | 651 mm |
| Dimension n | 254 mm |
| Dimension l | 48 mm |
| Dimension z | 687 mm |
| Dimension i | 29 mm |
| Dimension s | 23 mm |
| Bearing No. | UC212 |
| Housing No. | FL212 |
| System | Metric |
