Housed bearing unit CODEX UCFL209 SL
- Product code: 0000000070230
- Unit of measurement: Kos
- Tariff group: 84832000
- Net weight: 1.75 kg
Best price in the last 30 days: 33,31 €
In stock
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 33,31 €
In stock
Direct to factory order
DFO – DAP to your place

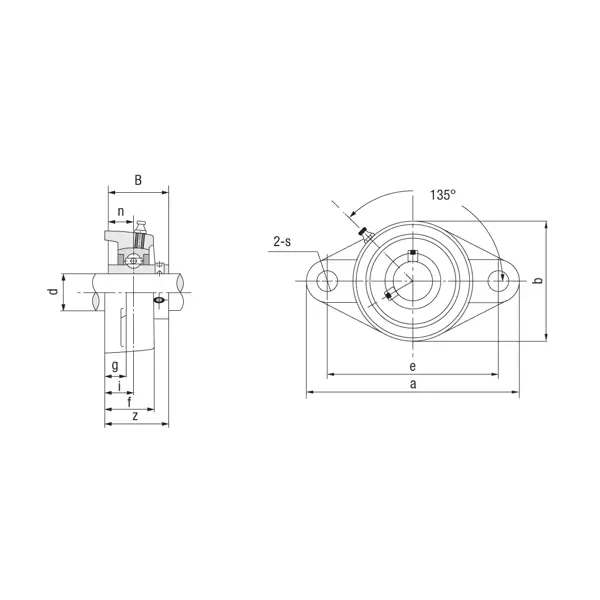

| Item group | Housed bearing unit |
|---|---|
| Bore diameter d | 45 mm |
| Width B | 49.2 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Dimension d | 45 mm |
| Total length a | 188 |
| Total width (base) b | 108 |
| Centre of attachment distance e | 148 |
| Material | HT200-Cast Iron |
| Bolt | M16 |
| Flange thickness g | 15 |
| Bearing track centre n | 19 |
| Fixing bore s | 19 mm |
| Total height z | 52.2 |
| Distance to raceway center i | 22 |
| Designation | UCFL209 |
| Dimension e | 148 mm |
| Dimension a | 188 mm |
| Dimension b | 108 mm |
| Dimension g | 15 mm |
| Dimension t | 565 mm |
| Dimension B | 492 mm |
| Dimension n | 19 mm |
| Dimension l | 38 mm |
| Dimension z | 522 mm |
| Dimension i | 22 mm |
| Dimension s | 19 mm |
| Bearing No. | UC209 |
| Housing No. | FL209 |
| System | Metric |
