Housed bearing unit CODEX UCFL206 SL
- Product code: 0000000070227
- Unit of measurement: Kos
- Tariff group: 84832000
- Net weight: 0.83 kg
Best price in the last 30 days: 19,64 €
In stock
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 19,64 €
In stock
Direct to factory order
DFO – DAP to your place

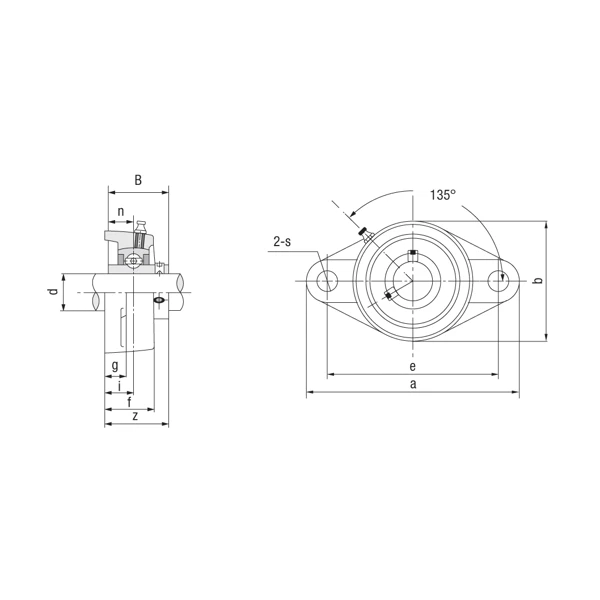

| Item group | Housed bearing unit |
|---|---|
| Bore diameter d | 30 mm |
| Width B | 38.1 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Dimension d | 30 mm |
| Total length a | 148 |
| Total width (base) b | 80 |
| Centre of attachment distance e | 117 |
| Material | HT200-Cast Iron |
| Bolt | M14 |
| Flange thickness g | 13 |
| Bearing track centre n | 15,9 |
| Fixing bore s | 16 mm |
| Total height z | 40.2 |
| Distance to raceway center i | 18 |
| Designation | UCFL206 |
| Dimension e | 117 mm |
| Dimension a | 148 mm |
| Dimension b | 80 mm |
| Dimension g | 13 mm |
| Dimension t | 445 mm |
| Dimension B | 381 mm |
| Dimension n | 159 mm |
| Dimension l | 31 mm |
| Dimension z | 402 mm |
| Dimension i | 18 mm |
| Dimension s | 16 mm |
| Bearing No. | UC206 |
| Housing No. | FL206 |
| System | Metric |
