Housed bearing unit CODEX UCFL205 SL
- Product code: 0000000070226
- Unit of measurement: Kos
- Tariff group: 84832000
- Net weight: 0.58 kg
Best price in the last 30 days: 13,39 €
In stock
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 13,39 €
In stock
Direct to factory order
DFO – DAP to your place

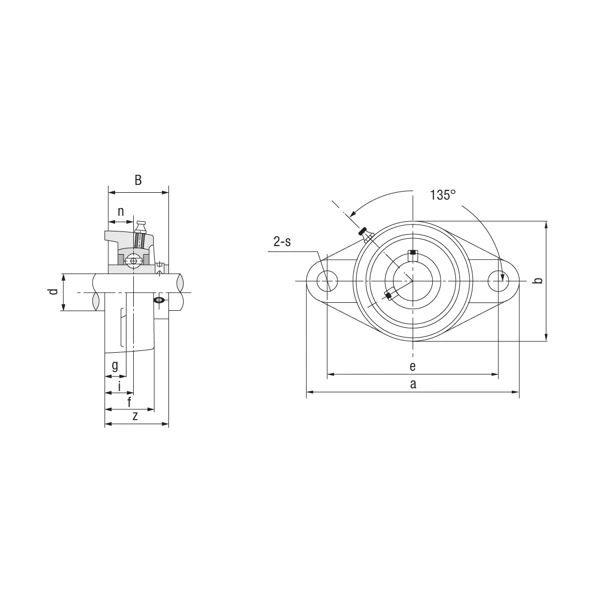

| Item group | Housed bearing unit |
|---|---|
| Bore diameter d | 25 mm |
| Width B | 34.1 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Dimension d | 25 mm |
| Total length a | 130 |
| Total width (base) b | 68 |
| Centre of attachment distance e | 99 |
| Material | HT200-Cast Iron |
| Bolt | M14 |
| Flange thickness g | 13 |
| Bearing track centre n | 14,3 |
| Fixing bore s | 16 mm |
| Total height z | 35.8 |
| Distance to raceway center i | 16 |
| Designation | UCFL205 |
| Dimension e | 99 mm |
| Dimension a | 130 mm |
| Dimension b | 68 mm |
| Dimension g | 13 mm |
| Dimension t | 40 mm |
| Dimension B | 341 mm |
| Dimension n | 143 mm |
| Dimension l | 27 mm |
| Dimension z | 358 mm |
| Dimension i | 16 mm |
| Dimension s | 16 mm |
| Bearing No. | UC205 |
| Housing No. | FL205 |
| System | Metric |
