Housed bearing unit CODEX UCF211 SL
- Product code: 0000000070222
- Unit of measurement: Kos
- Tariff group: 84832000
- Net weight: 3.12 kg
Best price in the last 30 days: 55,39 €
In stock
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 55,39 €
In stock
Direct to factory order
DFO – DAP to your place

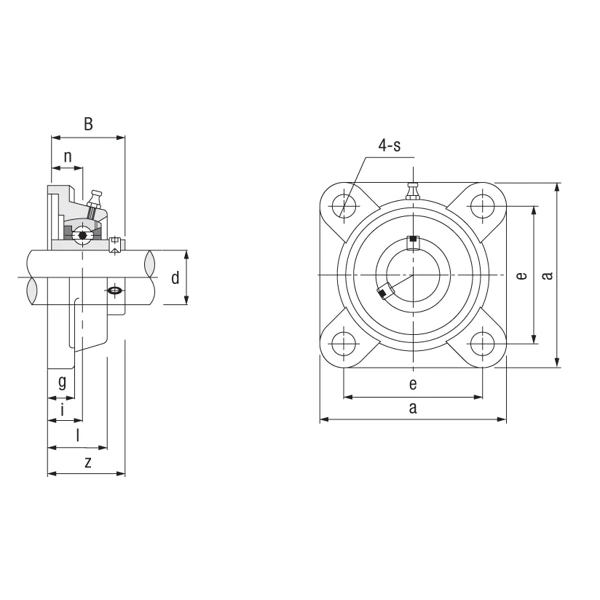

| Item group | Housed bearing unit |
|---|---|
| Bore diameter d | 55 mm |
| Width B | 55.6 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Dimension d | 55 mm |
| Total length a | 162 |
| Centre of attachment distance e | 130 |
| Material | HT200-Cast Iron |
| Bolt | M16 |
| Flange thickness g | 20 |
| Bearing track centre n | 22,2 |
| Height l | 43 |
| Fixing bore s | 19 mm |
| Total height z | 58.4 |
| Distance to raceway center i | 25 |
| Designation | UCF211 |
| Dimension e | 130 mm |
| Dimension a | 162 mm |
| Dimension g | 20 mm |
| Dimension t | 63 mm |
| Dimension B | 556 mm |
| Dimension n | 222 mm |
| Dimension l | 43 mm |
| Dimension z | 584 mm |
| Dimension i | 25 mm |
| Dimension s | 19 mm |
| Bearing No. | UC211 |
| Housing No. | F211 |
| System | Metric |
