Housed bearing unit CODEX UCF208 SL
- Product code: 0000000070219
- Unit of measurement: Kos
- Tariff group: 84832000
- Net weight: 1.67 kg
Best price in the last 30 days: 30,95 €
In stock
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 30,95 €
In stock
Direct to factory order
DFO – DAP to your place

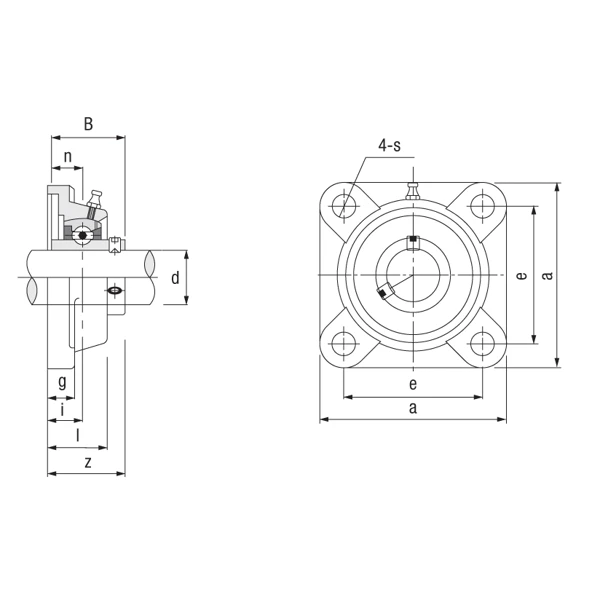

| Item group | Housed bearing unit |
|---|---|
| Bore diameter d | 40 mm |
| Width B | 49.2 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Dimension d | 40 mm |
| Total length a | 130 |
| Centre of attachment distance e | 102 |
| Material | HT200-Cast Iron |
| Bolt | M14 |
| Flange thickness g | 16 |
| Bearing track centre n | 19 |
| Height l | 36 |
| Fixing bore s | 16 mm |
| Total height z | 51.2 |
| Distance to raceway center i | 21 |
| Designation | UCF208 |
| Dimension e | 102 mm |
| Dimension a | 130 mm |
| Dimension g | 16 mm |
| Dimension t | 555 mm |
| Dimension B | 492 mm |
| Dimension n | 19 mm |
| Dimension l | 36 mm |
| Dimension z | 512 mm |
| Dimension i | 21 mm |
| Dimension s | 16 mm |
| Bearing No. | UC208 |
| Housing No. | F208 |
| System | Metric |
