Housed bearing unit CODEX UCF207 SL
- Product code: 0000000070218
- Unit of measurement: Kos
- Tariff group: 84832000
- Net weight: 1.33 kg
Best price in the last 30 days: 25,16 €
In stock
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 25,16 €
In stock
Direct to factory order
DFO – DAP to your place

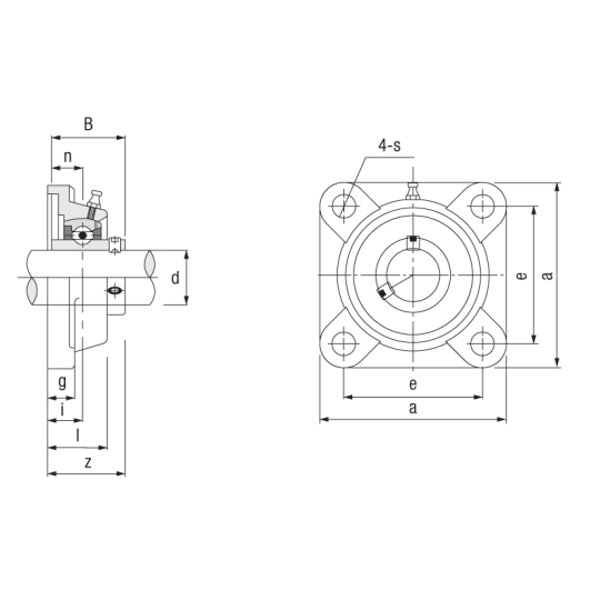

| Item group | Housed bearing unit |
|---|---|
| Bore diameter d | 35 mm |
| Width B | 42.9 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Dimension d | 35 mm |
| Total length a | 117 |
| Centre of attachment distance e | 92 |
| Material | HT200-Cast Iron |
| Bolt | M12 |
| Flange thickness g | 16 |
| Bearing track centre n | 17,5 |
| Height l | 34 |
| Fixing bore s | 14 mm |
| Total height z | 44.4 |
| Distance to raceway center i | 19 |
| Designation | UCF207 |
| Dimension e | 92 mm |
| Dimension a | 117 mm |
| Dimension g | 16 mm |
| Dimension t | 485 mm |
| Dimension B | 429 mm |
| Dimension n | 175 mm |
| Dimension l | 34 mm |
| Dimension z | 444 mm |
| Dimension i | 19 mm |
| Dimension s | 14 mm |
| Bearing No. | UC207 |
| Housing No. | F207 |
| System | Metric |
