Housed bearing unit CODEX UCF206 SL
- Product code: 0000000070217
- Unit of measurement: Kos
- Tariff group: 84832000
- Net weight: 1.02 kg
Best price in the last 30 days: 20,54 €
In stock
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 20,54 €
In stock
Direct to factory order
DFO – DAP to your place

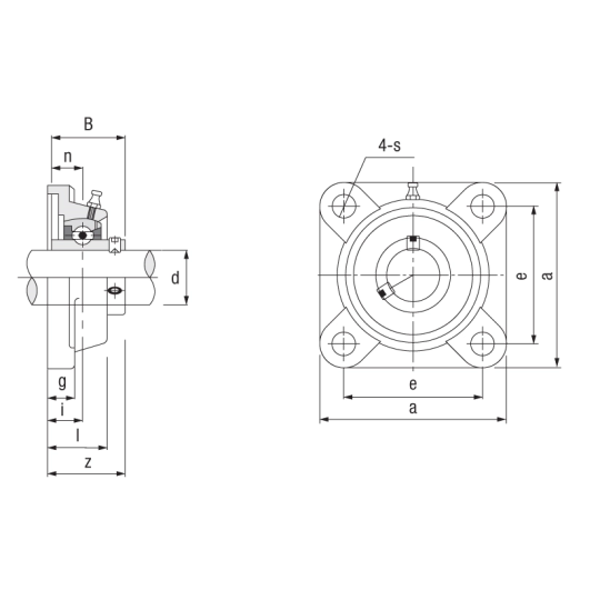

| Item group | Housed bearing unit |
|---|---|
| Bore diameter d | 30 mm |
| Width B | 38.1 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Dimension d | 30 mm |
| Total length a | 108 |
| Centre of attachment distance e | 83 |
| Material | HT200-Cast Iron |
| Bolt | M10 |
| Flange thickness g | 14 |
| Bearing track centre n | 15,9 |
| Height l | 31 |
| Fixing bore s | 12 mm |
| Total height z | 40.2 |
| Distance to raceway center i | 18 |
| Designation | UCF206 |
| Dimension e | 83 mm |
| Dimension a | 108 mm |
| Dimension g | 14 mm |
| Dimension t | 445 mm |
| Dimension B | 381 mm |
| Dimension n | 159 mm |
| Dimension l | 31 mm |
| Dimension z | 402 mm |
| Dimension i | 18 mm |
| Dimension s | 12 mm |
| Bearing No. | UC206 |
| Housing No. | F206 |
| System | Metric |
