Housed bearing unit CODEX UCF203 SL
- Product code: 0000000070214
- Unit of measurement: Kos
- Tariff group: 84832000
- Net weight: 0.57 kg
Best price in the last 30 days: 13,12 €
In stock
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 13,12 €
In stock
Direct to factory order
DFO – DAP to your place

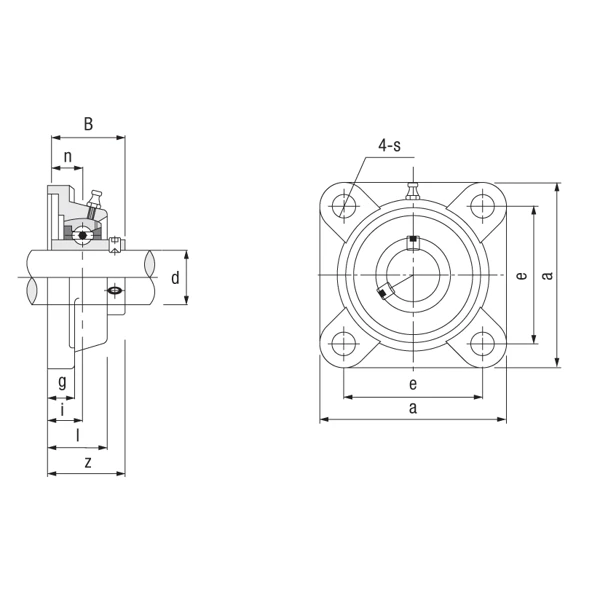

| Item group | Housed bearing unit |
|---|---|
| Bore diameter d | 17 mm |
| Width B | 31 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Dimension d | 17 mm |
| Total length a | 86 |
| Centre of attachment distance e | 64 |
| Material | HT200-Cast Iron |
| Bolt | M10 |
| Flange thickness g | 12 |
| Bearing track centre n | 12,7 |
| Height l | 25.5 |
| Fixing bore s | 12 mm |
| Total height z | 33.3 |
| Distance to raceway center i | 15 |
| Designation | UCF203 |
| Dimension e | 64 mm |
| Dimension a | 86 mm |
| Dimension g | 12 mm |
| Dimension t | 375 mm |
| Dimension B | 31 mm |
| Dimension n | 127 mm |
| Dimension l | 255 mm |
| Dimension z | 333 mm |
| Dimension i | 15 mm |
| Dimension s | 12 mm |
| Bearing No. | UC203 |
| Housing No. | F203 |
| System | Metric |
