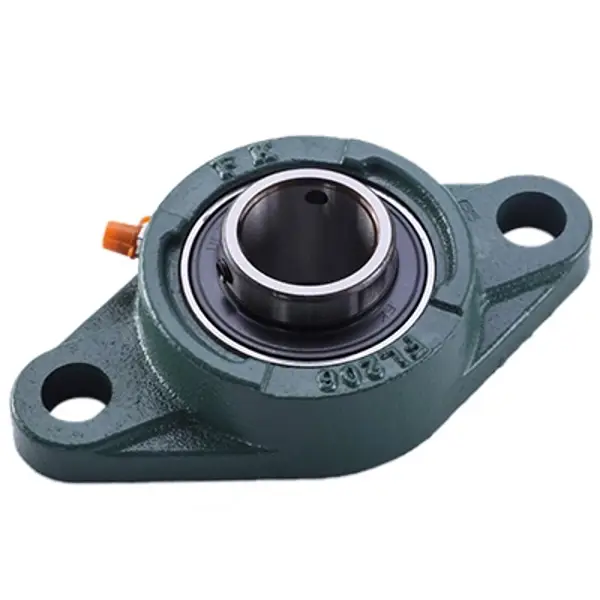

Housed bearing unit FK UCFL203
- Product code: 0000000023011
- Unit of measurement: Piece
- Tariff group: 84832000
- Net weight: 0.43 kg
Best price in the last 30 days: 16,84 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 16,84 €
Direct to factory order
DFO – DAP to your place
| Item group | Bearing unit |
|---|---|
| Bore diameter d | 17 mm |
| Width B | 31 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Dimension d | 17 mm |
| Total length a | 113 mm |
| Total width (base) b | 60 mm |
| Centre of attachment distance e | 90 mm |
| Material | HT200-Cast Iron |
| Bolt | M10 |
| Flange thickness g | 11 mm |
| Bearing track centre n | 12,7 |
| Fixing bore s | 12 mm |
| Total height z | 33.3 mm |
| Distance to raceway center i | 15 |
| Subgroup bearing unit | With flange |
| Designation | UCFL 203 |
| Dimension z | 333 mm |
| Designation premium | UCFL203 |
| Bearing No. | UC203 |
| Housing No. | FL203 |
| System | Metric |
