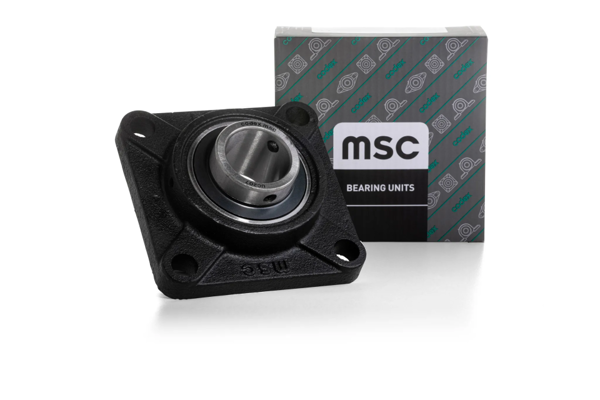

Housed bearing unit MSC UCF209 SL
- Product code: 0000000056762
- Unit of measurement: Piece
- Tariff group: 84832000
- Net weight: 2.3 kg
Best price in the last 30 days: 12,46 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 12,46 €
Direct to factory order
DFO – DAP to your place
| Item group | Bearing unit |
|---|---|

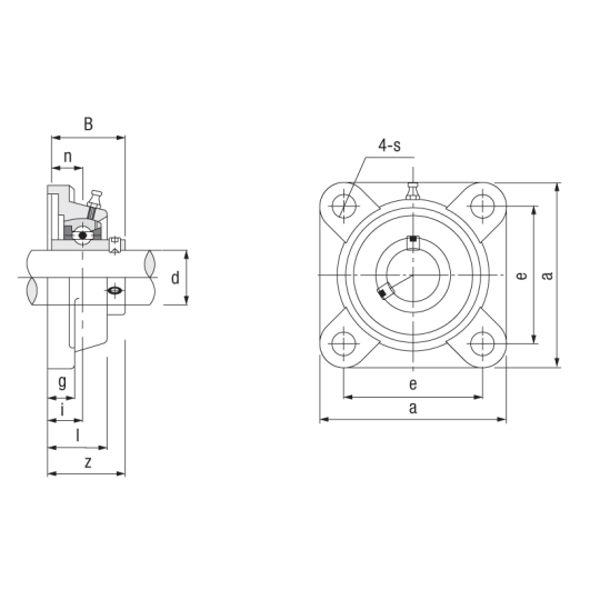

| Bore diameter d | 45 mm |
| Width B | 49.2 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 137 mm |
| Centre of attachment distance e | 105 mm |
| Material | HT200-Cast Iron |
| Bolt | M14 |
| Flange thickness g | 18 |
| Bearing track centre n | 19 |
| Height l | 38 |
| Fixing bore s | 16 mm |
| Total height z | 52.2 |
| Distance to raceway center i | 22 |
| Subgroup bearing unit | With flange |
| Designation | UCF209 |
| Bearing No. | UC209 |
| Housing No. | F209 |
| System | Metric |
