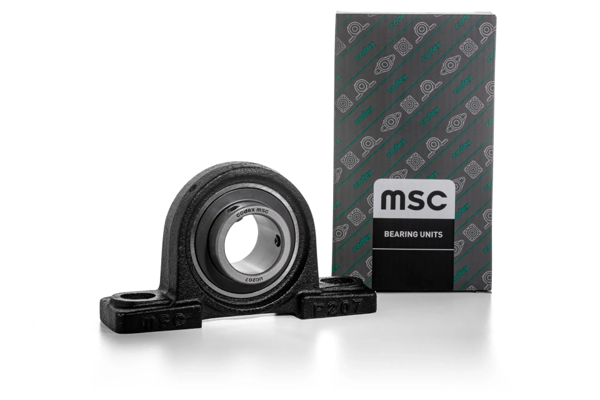

Housed bearing unit MSC UCP206 SL
- Product code: 0000000056752
- Unit of measurement: Piece
- Tariff group: 84832000
- Net weight: 1.2 kg
Best price in the last 30 days: 7,08 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 7,08 €
Direct to factory order
DFO – DAP to your place

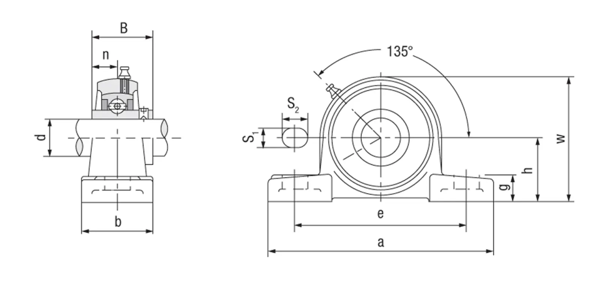

| Item group | Bearing unit |
|---|---|
| Bore diameter d | 30 mm |
| Width B | 38.1 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 160 mm |
| Total width (base) b | 44 |
| Height w | 84 |
| Centre of attachment distance e | 121 mm |
| Axis centre distance h | 42.9 mm |
| Material | HT200-Cast Iron |
| Bolt | M14 |
| Width (aperture) S1 | 17 |
| Length (opening) S2 | 20 |
| Flange thickness g | 17 |
| Bearing track centre n | 15,9 |
| Subgroup bearing unit | With flange |
| Designation | UCP206 |
| Bearing No. | UC206 |
| Housing No. | P206 |
| System | Metric |
