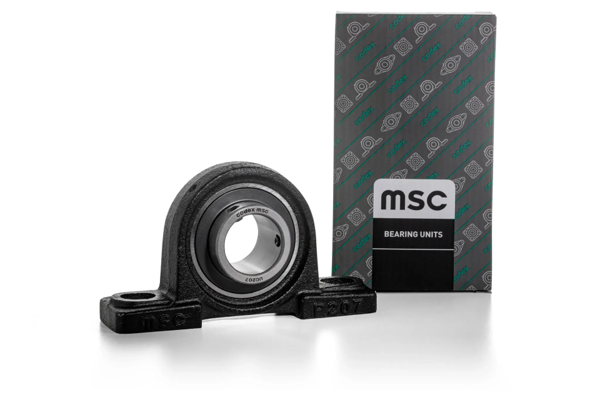

Housed bearing unit MSC UCP205 SL
- Product code: 0000000056751
- Unit of measurement: Piece
- Tariff group: 84832000
- Net weight: 0.816 kg
Best price in the last 30 days: 5,03 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 5,03 €
Direct to factory order
DFO – DAP to your place

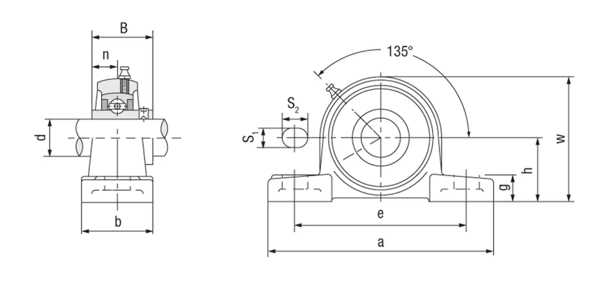

| Item group | Bearing unit |
|---|---|
| Bore diameter d | 25 mm |
| Width B | 34.1 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 140 mm |
| Total width (base) b | 38 |
| Height w | 71 |
| Centre of attachment distance e | 105 mm |
| Axis centre distance h | 36.5 mm |
| Material | HT200-Cast Iron |
| Bolt | M10 |
| Width (aperture) S1 | 13 |
| Length (opening) S2 | 19 |
| Flange thickness g | 15 |
| Bearing track centre n | 14,3 |
| Subgroup bearing unit | With flange |
| Designation | UCP205 |
| Bearing No. | UC205 |
| Housing No. | P205 |
| System | Metric |
