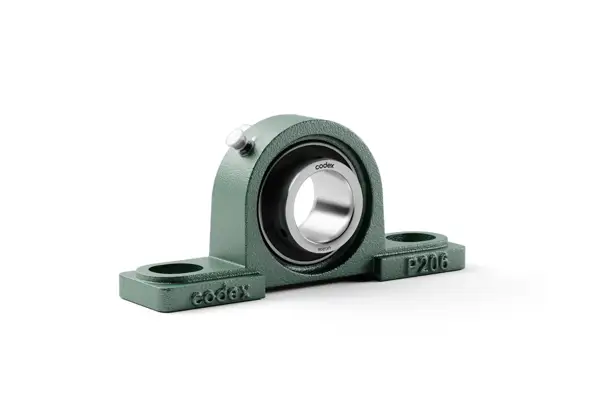

Housed bearing unit CODEX UCPX10 SL
- Product code: 0000000100803
- Unit of measurement: Piece
- Tariff group: 8483303290
- Net weight: 4.07 kg
Best price in the last 30 days: 57,97 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 57,97 €
Direct to factory order
DFO – DAP to your place

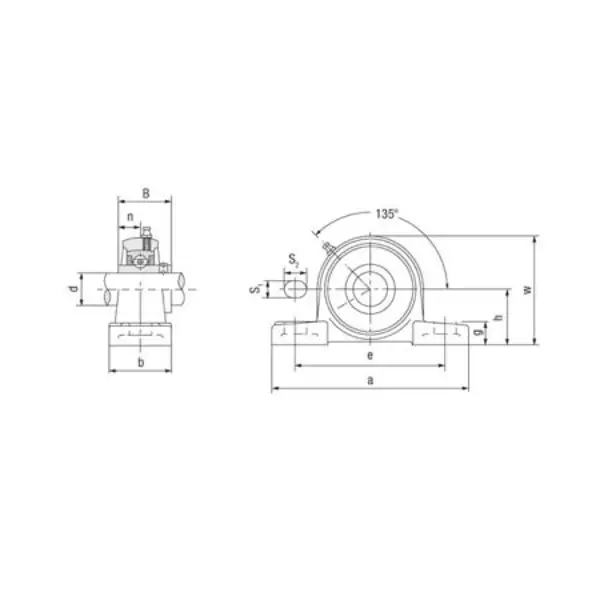

| Item group | Bearing unit |
|---|---|
| Bore diameter d | 50 mm |
| Width B | 55.6 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 241 mm |
| Total width (base) b | 73 |
| Height w | 126 |
| Centre of attachment distance e | 171 mm |
| Axis centre distance h | 63.5 mm |
| Material | HT200-Cast Iron |
| Bolt | M16 |
| Width (aperture) S1 | 20 |
| Length (opening) S2 | 23 |
| Flange thickness g | 27 |
| Bearing track centre n | 22,2 |
| Subgroup bearing unit | With flange |
| Designation | UCPX10 |
| Bearing No. | UCX10 |
| Housing No. | PX10 |
| System | Metric |
