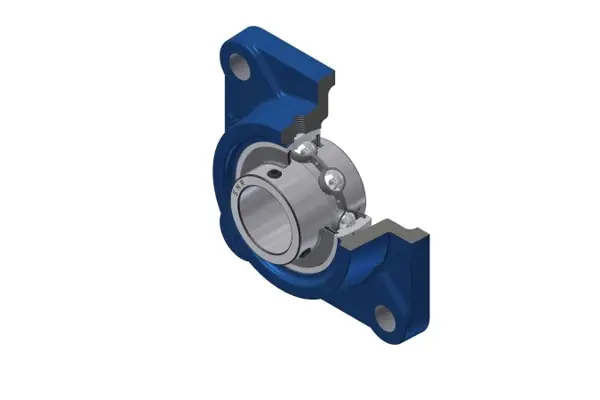

Housed bearing unit SNR UCF324
- Product code: 0000000053371
- Unit of measurement: Piece
- Tariff group: 8483303290
- Net weight: 48.96 kg
Best price in the last 30 days: 1.684,04 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 1.684,04 €
Direct to factory order
DFO – DAP to your place

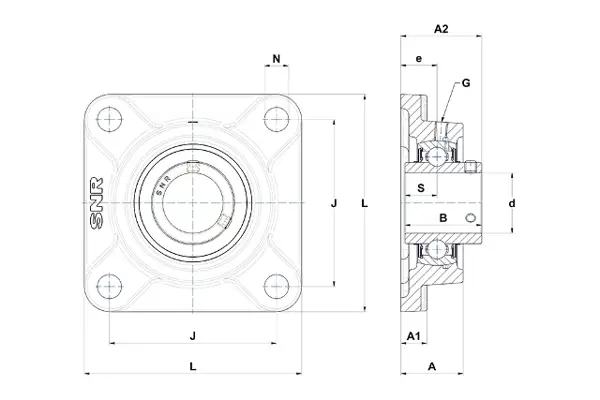

| Item group | Bearing unit |
|---|---|
| Bore diameter d | 120 mm |
| Width B | 126 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 370 mm |
| Centre of attachment distance e | 290 mm |
| Bolt | M36 |
| Flange thickness g | 40 mm |
| Bearing track centre n | 51 |
| Height l | 110 mm |
| Fixing bore s | 41 mm |
| Total height z | 140 mm |
| Distance to raceway center i | 65 |
| Subgroup bearing unit | With flange |
| Designation | UCF 324 |
| Designation premium | UCF324 |
| Bearing No. | UC324 |
| Housing No. | F324 |
| System | Metric |
