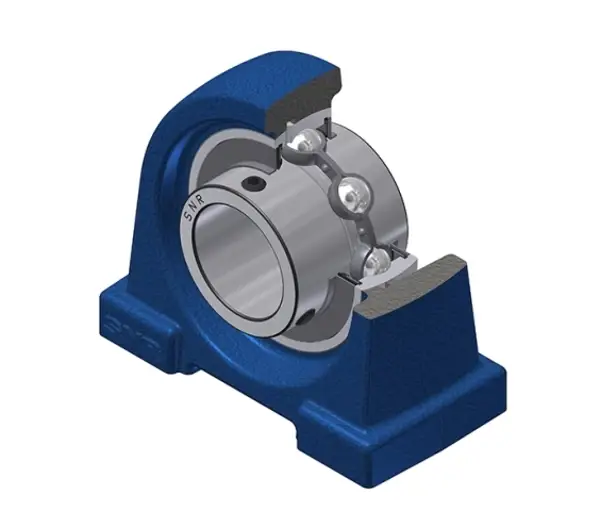

Housed bearing unit SNR UCPA206
- Product code: 0000000053462
- Unit of measurement: Piece
- Tariff group: 8483303290
- Net weight: 1.08 kg
Best price in the last 30 days: 35,59 €
DFO
Direct to factory order
?
DFO
What is DFO?
DFO (Direct to factory order)
- Order directly from the factory at prices below stock, with longer delivery due to production and transport time.
MOQ (minimum order quantity)
- Available only when the specified minimum quantity is ordered.
ETA (Estimated Time of Arrival)
- Production, quality control, and transport time combined.
DAP to your place
ETA:
Best price in the last 30 days: 35,59 €
DFO
Direct to factory order
?
DFO
What is DFO?
DFO (Direct to factory order)
- Order directly from the factory at prices below stock, with longer delivery due to production and transport time.
MOQ (minimum order quantity)
- Available only when the specified minimum quantity is ordered.
ETA (Estimated Time of Arrival)
- Production, quality control, and transport time combined.
DAP to your place
ETA:

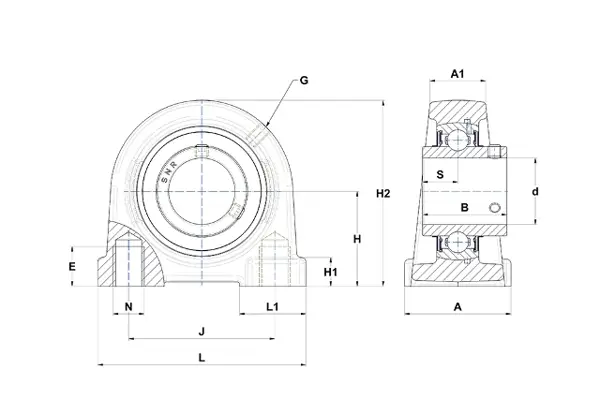

| Item group | Bearing unit |
|---|---|
| Bore diameter d | 30 mm |
| Width B | 38.1 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 94 mm |
| Total width (base) b | 50 mm |
| Height w | 84 mm |
| Centre of attachment distance e | 66 mm |
| Bolt | M14 |
| Flange thickness g | 12 mm |
| Bearing track centre n | 15,9 |
| Height l | 18 mm |
| Subgroup bearing unit | With flange |
| Designation | UCPA 206 |
| Designation premium | UCPA206 |
| Bearing No. | UC206 |
| Housing No. | PA206 |
| System | Metric |
