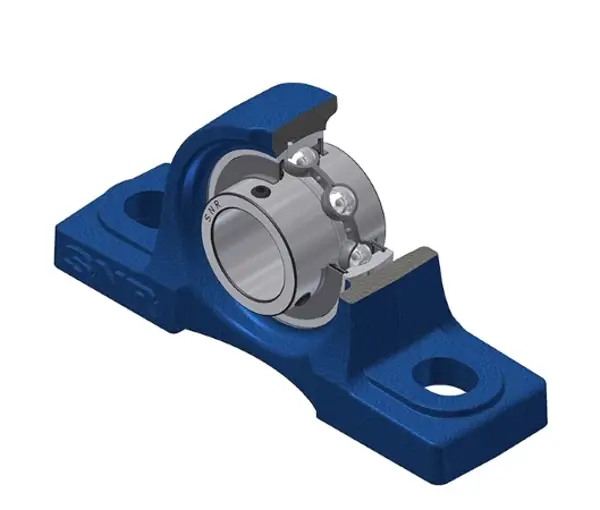

Housed bearing unit SNR UCP310
- Product code: 0000000053453
- Unit of measurement: Piece
- Tariff group: 8483303290
- Net weight: 6.5 kg
Best price in the last 30 days: 113,21 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 113,21 €
Direct to factory order
DFO – DAP to your place

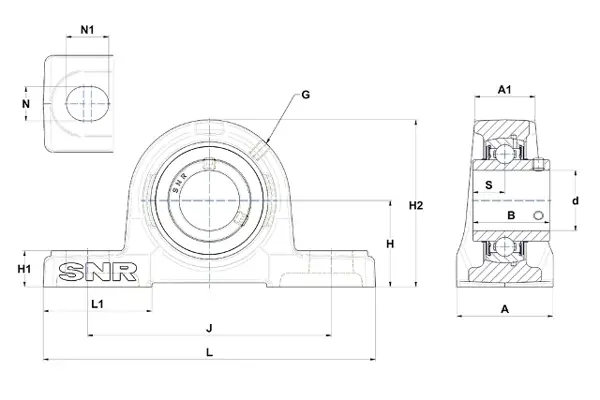

| Item group | Bearing unit |
|---|---|
| Bore diameter d | 50 mm |
| Width B | 61 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 275 mm |
| Total width (base) b | 75 mm |
| Height w | 143 mm |
| Centre of attachment distance e | 212 mm |
| Bolt | M16 |
| Width (aperture) S1 | 20 mm |
| Length (opening) S2 | 35 mm |
| Flange thickness g | 27 mm |
| Bearing track centre n | 22 |
| Subgroup bearing unit | With flange |
| Designation | UCP 310 |
| Designation premium | UCP310 |
| Bearing No. | UC310 |
| Housing No. | P310 |
| System | Metric |
