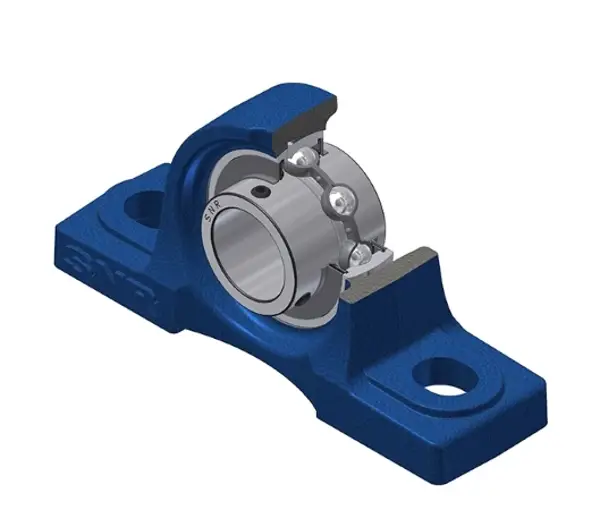

Housed bearing unit SNR UCP306
- Product code: 0000000053450
- Unit of measurement: Piece
- Tariff group: 8483303290
- Net weight: 2.15 kg
Best price in the last 30 days: 62,07 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 62,07 €
Direct to factory order
DFO – DAP to your place

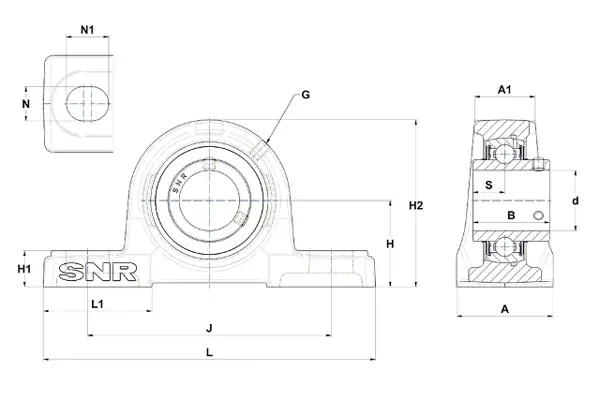

| Item group | Bearing unit |
|---|---|
| Bore diameter d | 30 mm |
| Width B | 43 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 180 mm |
| Total width (base) b | 50 mm |
| Height w | 95 mm |
| Centre of attachment distance e | 140 mm |
| Bolt | M14 |
| Width (aperture) S1 | 17 mm |
| Length (opening) S2 | 20 mm |
| Flange thickness g | 18 mm |
| Bearing track centre n | 17 |
| Subgroup bearing unit | With flange |
| Designation | UCP 306 |
| Designation premium | UCP306 |
| Bearing No. | UC306 |
| Housing No. | P306 |
| System | Metric |
