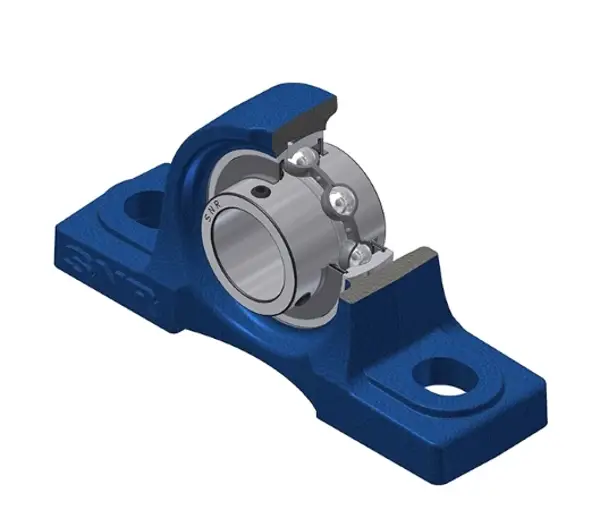

Housed bearing unit SNR UCP214
- Product code: 0000000053444
- Unit of measurement: Piece
- Tariff group: 8483303290
- Net weight: 5.86 kg
Best price in the last 30 days: 139,62 €
DFO
Direct to factory order
?
DFO
What is DFO?
DFO (Direct to factory order)
- Order directly from the factory at prices below stock, with longer delivery due to production and transport time.
MOQ (minimum order quantity)
- Available only when the specified minimum quantity is ordered.
ETA (Estimated Time of Arrival)
- Production, quality control, and transport time combined.
DAP to your place
ETA:
Best price in the last 30 days: 139,62 €
DFO
Direct to factory order
?
DFO
What is DFO?
DFO (Direct to factory order)
- Order directly from the factory at prices below stock, with longer delivery due to production and transport time.
MOQ (minimum order quantity)
- Available only when the specified minimum quantity is ordered.
ETA (Estimated Time of Arrival)
- Production, quality control, and transport time combined.
DAP to your place
ETA:

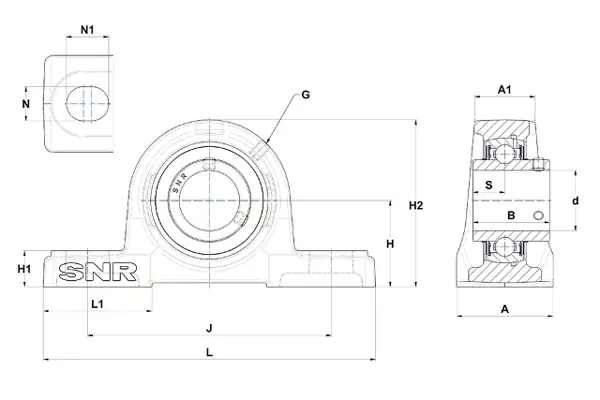

| Item group | Bearing unit |
|---|---|
| Bore diameter d | 70 mm |
| Width B | 74.6 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 266 mm |
| Total width (base) b | 72 mm |
| Height w | 156 mm |
| Centre of attachment distance e | 210 mm |
| Axis centre distance h | 79.4 mm |
| Bolt | M20 |
| Width (aperture) S1 | 25 mm |
| Length (opening) S2 | 28 mm |
| Flange thickness g | 27 mm |
| Bearing track centre n | 30,2 |
| Subgroup bearing unit | With flange |
| Designation | UCP 214 |
| Designation premium | UCP214 |
| Bearing No. | UC214 |
| Housing No. | P214 |
| System | Metric |
