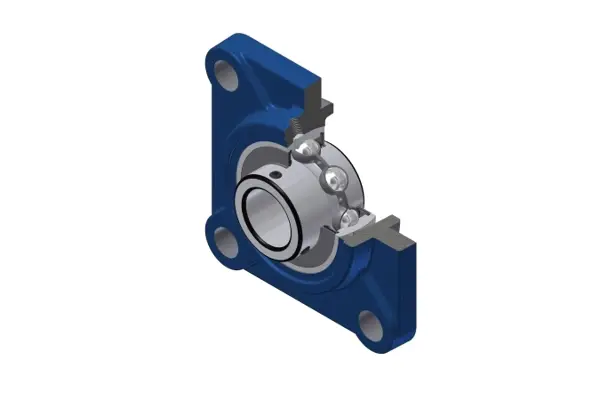

Housed bearing unit SNR UCFS315
- Product code: 0000000053429
- Unit of measurement: Piece
- Tariff group: 8483303290
- Net weight: 12.43 kg
Best price in the last 30 days: 300,51 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 300,51 €
Direct to factory order
DFO – DAP to your place

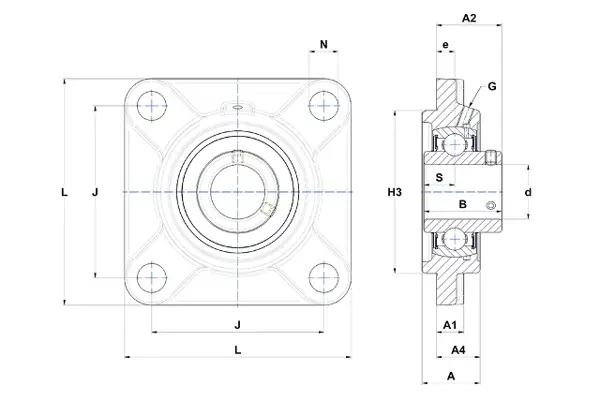

| Item group | Bearing unit |
|---|---|
| Bore diameter d | 75 mm |
| Width B | 82 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 236 mm |
| Centre of attachment distance e | 184 mm |
| Bolt | M22 |
| Flange thickness g | 18 |
| Bearing track centre n | 32 |
| Height l | 66 |
| Fixing bore s | 25 mm |
| Total height z | 89 |
| Distance to raceway center i | 21 |
| Subgroup bearing unit | With flange |
| Designation premium | UCFS315 |
| Bearing No. | UC315 |
| Housing No. | FS315 |
| System | Metric |
