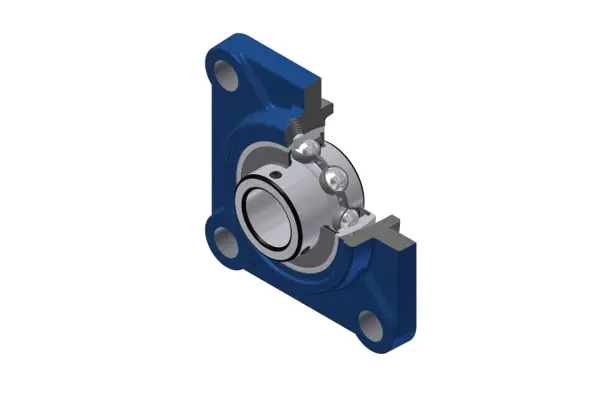

Housed bearing unit SNR UCFS311
- Product code: 0000000053426
- Unit of measurement: Piece
- Tariff group: 8483303290
- Net weight: 5.93 kg
Best price in the last 30 days: 156,16 €
DFO
Direct to factory order
?
DFO
What is DFO?
DFO (Direct to factory order)
- Order directly from the factory at prices below stock, with longer delivery due to production and transport time.
MOQ (minimum order quantity)
- Available only when the specified minimum quantity is ordered.
ETA (Estimated Time of Arrival)
- Production, quality control, and transport time combined.
DAP to your place
ETA:
Best price in the last 30 days: 156,16 €
DFO
Direct to factory order
?
DFO
What is DFO?
DFO (Direct to factory order)
- Order directly from the factory at prices below stock, with longer delivery due to production and transport time.
MOQ (minimum order quantity)
- Available only when the specified minimum quantity is ordered.
ETA (Estimated Time of Arrival)
- Production, quality control, and transport time combined.
DAP to your place
ETA:

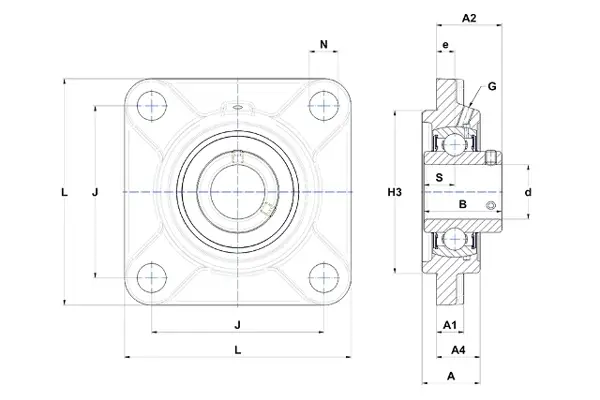

| Item group | Bearing unit |
|---|---|
| Bore diameter d | 55 mm |
| Width B | 66 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 185 mm |
| Centre of attachment distance e | 140 mm |
| Bolt | M20 |
| Flange thickness g | 13 mm |
| Bearing track centre n | 25 |
| Height l | 52 mm |
| Fixing bore s | 23 mm |
| Total height z | 71 mm |
| Distance to raceway center i | 17 |
| Subgroup bearing unit | With flange |
| Designation premium | UCFS311 |
| Bearing No. | UC311 |
| Housing No. | FS311 |
| System | Metric |
