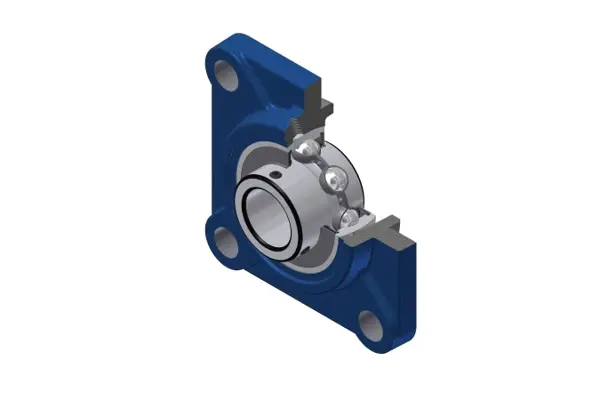

Housed bearing unit SNR UCFS306
- Product code: 0000000053422
- Unit of measurement: Piece
- Tariff group: 8483303290
- Net weight: 1.86 kg
Best price in the last 30 days: 62,07 €
DFO
Direct to factory order
?
DFO
What is DFO?
DFO (Direct to factory order)
- Order directly from the factory at prices below stock, with longer delivery due to production and transport time.
MOQ (minimum order quantity)
- Available only when the specified minimum quantity is ordered.
ETA (Estimated Time of Arrival)
- Production, quality control, and transport time combined.
DAP to your place
ETA:
Best price in the last 30 days: 62,07 €
DFO
Direct to factory order
?
DFO
What is DFO?
DFO (Direct to factory order)
- Order directly from the factory at prices below stock, with longer delivery due to production and transport time.
MOQ (minimum order quantity)
- Available only when the specified minimum quantity is ordered.
ETA (Estimated Time of Arrival)
- Production, quality control, and transport time combined.
DAP to your place
ETA:

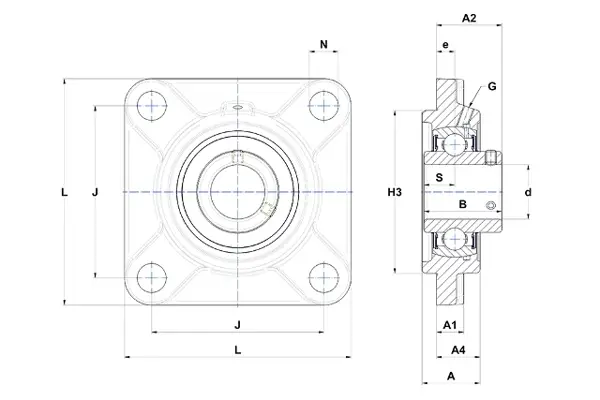

| Item group | Bearing unit |
|---|---|
| Bore diameter d | 30 mm |
| Width B | 43 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 125 mm |
| Centre of attachment distance e | 95 mm |
| Bolt | M14 |
| Flange thickness g | 8 mm |
| Bearing track centre n | 17 |
| Height l | 32 mm |
| Fixing bore s | 16 mm |
| Total height z | 44 mm |
| Distance to raceway center i | 10 |
| Subgroup bearing unit | With flange |
| Designation premium | UCFS306 |
| Bearing No. | UC306 |
| Housing No. | FS306 |
| System | Metric |
