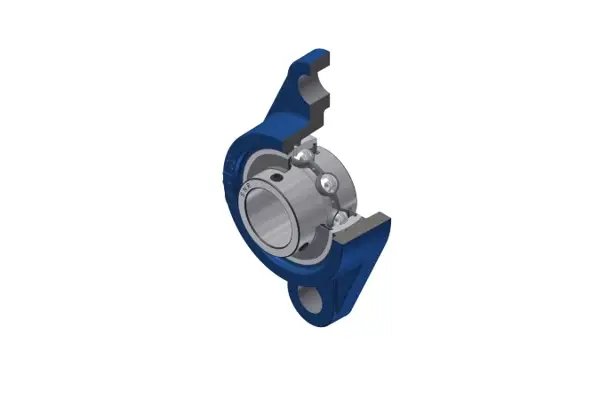

Housed bearing unit SNR UCFL216
- Product code: 0000000053409
- Unit of measurement: Piece
- Tariff group: 8483303290
- Net weight: 6.91 kg
Best price in the last 30 days: 183,05 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 183,05 €
Direct to factory order
DFO – DAP to your place

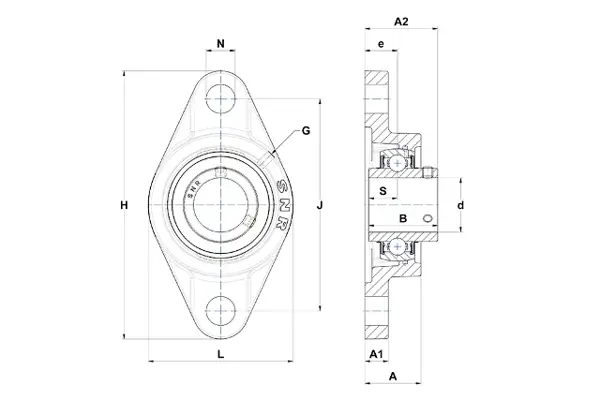

| Item group | Bearing unit |
|---|---|
| Bore diameter d | 80 mm |
| Width B | 82.6 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 290 mm |
| Total width (base) b | 180 mm |
| Centre of attachment distance e | 233 mm |
| Bolt | M22 |
| Flange thickness g | 22 mm |
| Bearing track centre n | 33,3 |
| Fixing bore s | 25 mm |
| Total height z | 83.3 mm |
| Distance to raceway center i | 34 |
| Subgroup bearing unit | With flange |
| Designation | UCFL 216 |
| Designation premium | UCFL216 |
| Bearing No. | UC216 |
| Housing No. | FL216 |
| System | Metric |
