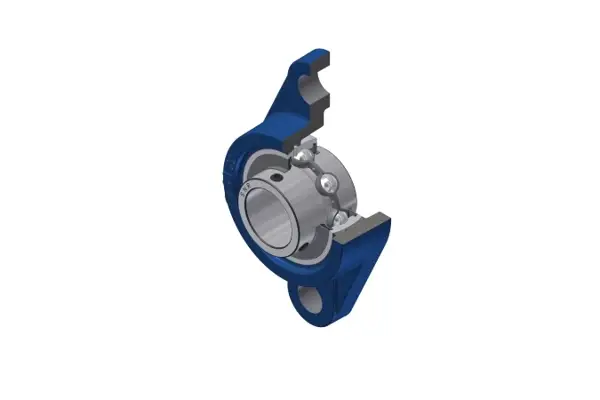

Housed bearing unit SNR UCFL213
- Product code: 0000000053407
- Unit of measurement: Piece
- Tariff group: 8483303290
- Net weight: 4.56 kg
Best price in the last 30 days: 115,36 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 115,36 €
Direct to factory order
DFO – DAP to your place

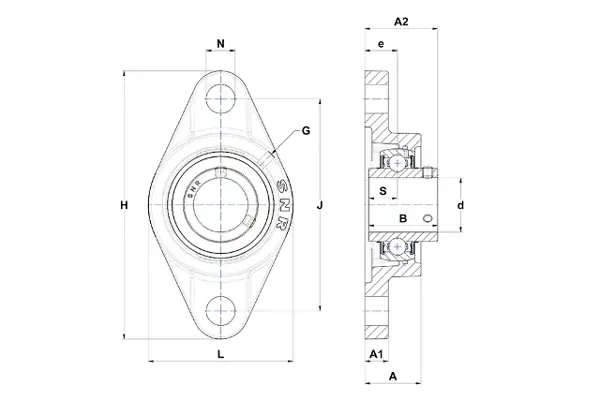

| Item group | Bearing unit |
|---|---|
| Bore diameter d | 65 mm |
| Width B | 65.1 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 258 mm |
| Total width (base) b | 155 mm |
| Centre of attachment distance e | 210 mm |
| Bolt | M20 |
| Flange thickness g | 22 mm |
| Bearing track centre n | 25,4 |
| Fixing bore s | 23 mm |
| Total height z | 69.7 mm |
| Distance to raceway center i | 30 |
| Subgroup bearing unit | With flange |
| Designation | UCFL 213 |
| Designation premium | UCFL213 |
| Bearing No. | UC213 |
| Housing No. | FL213 |
| System | Metric |
