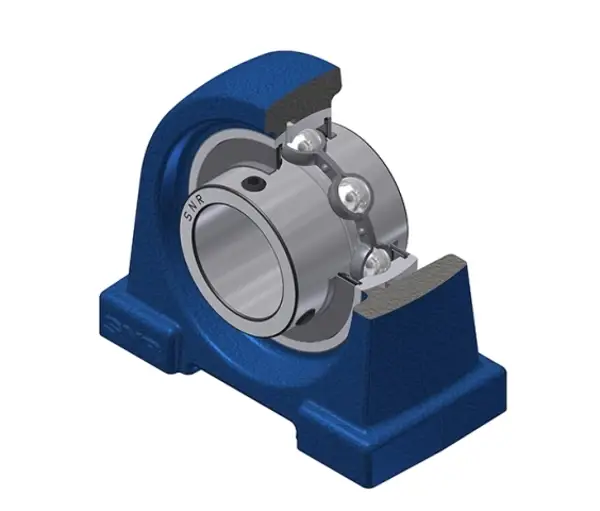

Housed bearing unit SNR UCPA212
- Product code: 0000000048988
- Unit of measurement: Piece
- Tariff group: 84832000
- Net weight: 4.11 kg
Best price in the last 30 days: 210,77 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 210,77 €
Direct to factory order
DFO – DAP to your place

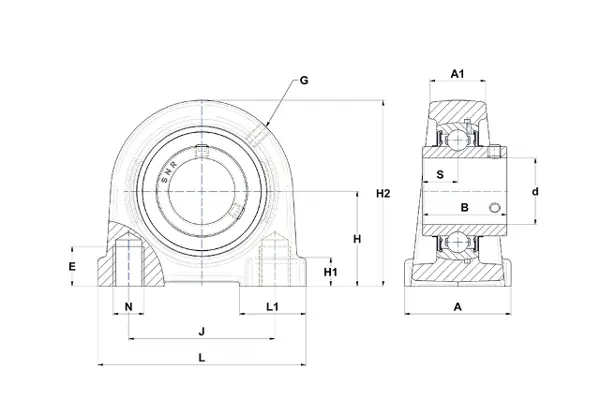

| Item group | Bearing unit |
|---|---|
| Bore diameter d | 60 mm |
| Width B | 65.1 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 150 mm |
| Total width (base) b | 68 |
| Height w | 138 |
| Centre of attachment distance e | 114 mm |
| Bolt | M16 |
| Flange thickness g | 15 |
| Bearing track centre n | 25,4 |
| Height l | 25 |
| Subgroup bearing unit | With flange |
| Designation | UCPA 212 |
| Designation premium | UCPA212 |
| Bearing No. | UC212 |
| Housing No. | PA212 |
| System | Metric |
