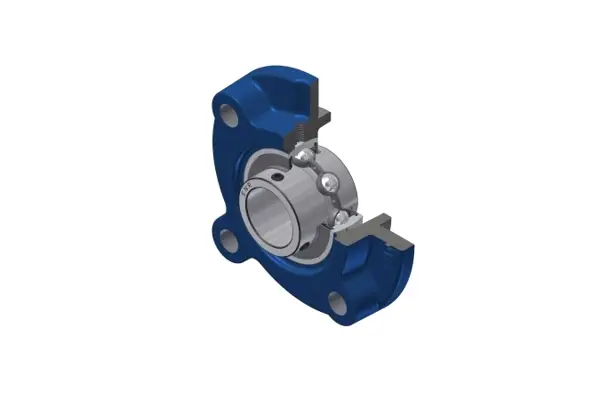

Housed bearing unit SNR UCFC 207
- Product code: 0000000025720
- Unit of measurement: Piece
- Tariff group: 84832000
- Net weight: 1.67 kg
Best price in the last 30 days: 49,97 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 49,97 €
Direct to factory order
DFO – DAP to your place

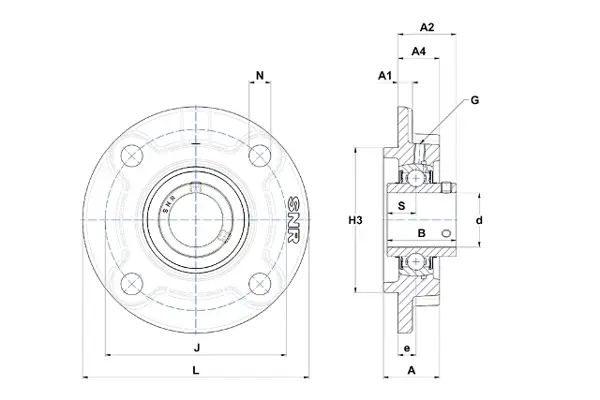

| Item group | Bearing unit |
|---|---|
| Bore diameter d | 35 mm |
| Width B | 42.9 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 135 mm |
| Centre of attachment distance e | 77.8 mm |
| Bolt | M12 |
| Flange thickness g | 26 mm |
| Bearing track centre n | 17,5 |
| Fixing bore s | 14 mm |
| Total height z | 36.4 mm |
| Distance to raceway center i | 11 |
| Subgroup bearing unit | With flange |
| Designation premium | UCFC 207 |
| Bearing No. | UC207 |
| Housing No. | FC207 |
| System | Metric |
