FK

Housed bearing unit FK UKT209

  • Product code: 0000000023099
  • Unit of measurement: Piece
  • Tariff group: 84832000
  • Net weight: 2.51 kg
Best price in the last 30 days: 40,93 €

Direct to factory order

DFO – DAP to your place

Best price in the last 30 days: 40,93 €

Direct to factory order

DFO – DAP to your place

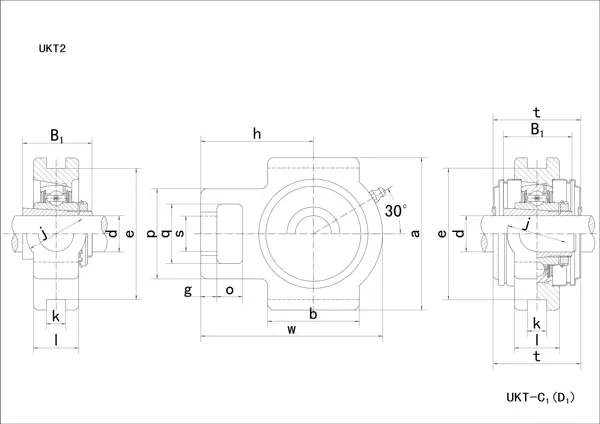

Item group Bearing unit
Bore diameter d 45 mm
Width B 50 mm
Cage material Steel
Bore type Tapered 1:12
Bearing material Steel
Total width (base) b 83
Height w 144
Centre of attachment distance e 102 mm
Material HT200-Cast Iron
Flange thickness g 16
Height l 35
Fixing bore s 29 mm
Subgroup bearing unit With flange
Designation UKT 209
Designation premium UKT209
Bearing No. UK209
Housing No. T209
System Metric
