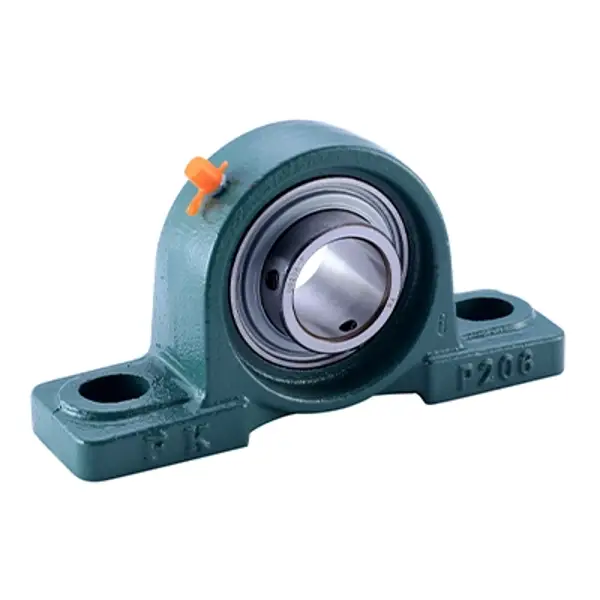

Housed bearing unit FK UCP205
- Product code: 0000000055495
- Unit of measurement: Piece
- Tariff group: 84832000
- Net weight: 0.76 kg
Best price in the last 30 days: 13,98 €
DFO
Direct to factory order
?
DFO
What is DFO?
DFO (Direct to factory order)
- Order directly from the factory at prices below stock, with longer delivery due to production and transport time.
MOQ (minimum order quantity)
- Available only when the specified minimum quantity is ordered.
ETA (Estimated Time of Arrival)
- Production, quality control, and transport time combined.
DAP to your place
ETA:
Best price in the last 30 days: 13,98 €
DFO
Direct to factory order
?
DFO
What is DFO?
DFO (Direct to factory order)
- Order directly from the factory at prices below stock, with longer delivery due to production and transport time.
MOQ (minimum order quantity)
- Available only when the specified minimum quantity is ordered.
ETA (Estimated Time of Arrival)
- Production, quality control, and transport time combined.
DAP to your place
ETA:

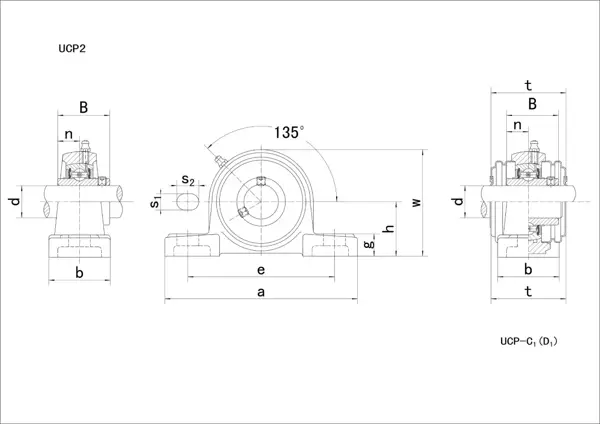

| Item group | Bearing unit |
|---|---|
| Bore diameter d | 25 mm |
| Width B | 34 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Steel |
| Total length a | 140 mm |
| Total width (base) b | 38 mm |
| Height w | 70 mm |
| Centre of attachment distance e | 105 mm |
| Axis centre distance h | 36.5 mm |
| Material | HT200-Cast Iron |
| Bolt | M10 |
| Width (aperture) S1 | 13 mm |
| Length (opening) S2 | 19 mm |
| Flange thickness g | 16 mm |
| Bearing track centre n | 14,3 |
| Subgroup bearing unit | With flange |
| Designation | UCP 205 |
| Designation premium | UCP205 |
| Bearing No. | UC205 |
| Housing No. | P205 |
| System | Metric |
