Insert bearing CODEX UC 213
- Product code: 0000000111006
- Unit of measurement: Piece
- Tariff group: 84821090
- Net weight: 1.85 kg
Best price in the last 30 days: 44,43 €
Direct to factory order
DFO – DAP to your place
New in the range
Best price in the last 30 days: 44,43 €
Direct to factory order
DFO – DAP to your place
| Item group | Insert bearing |
|---|---|
| Subgroup bearing 1 | Insert bearings |

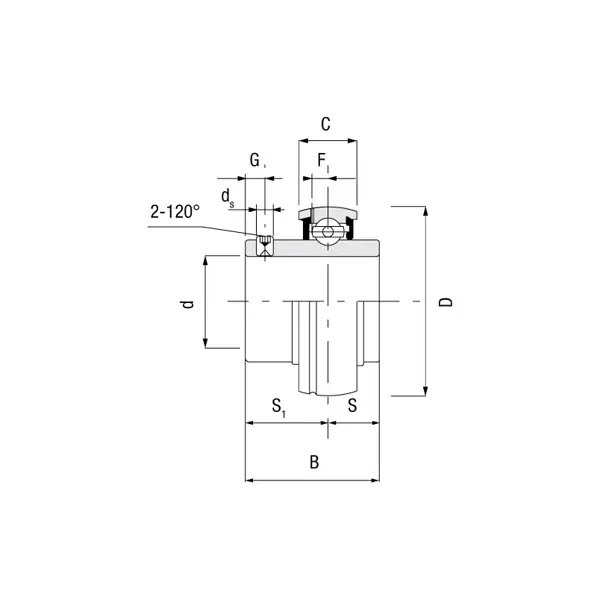

| Bore diameter d | 65 mm |
| Outside diameter D | 120 mm |
| Width B | 65.1 mm |
| Width C | 28 mm |
| Thread hole distance G | 12 |
| Lubrication hole distance | 8,2 |
| Designation | UC 213 |
| Basic dynamic load rating | 61000 kn |
| Basic static load rating | 40000 kn |
