Insert bearing CODEX UC 202
- Product code: 0000000111005
- Unit of measurement: Piece
- Tariff group: 84821090
- Net weight: 0.19 kg
Best price in the last 30 days: 8,97 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 8,97 €
Direct to factory order
DFO – DAP to your place

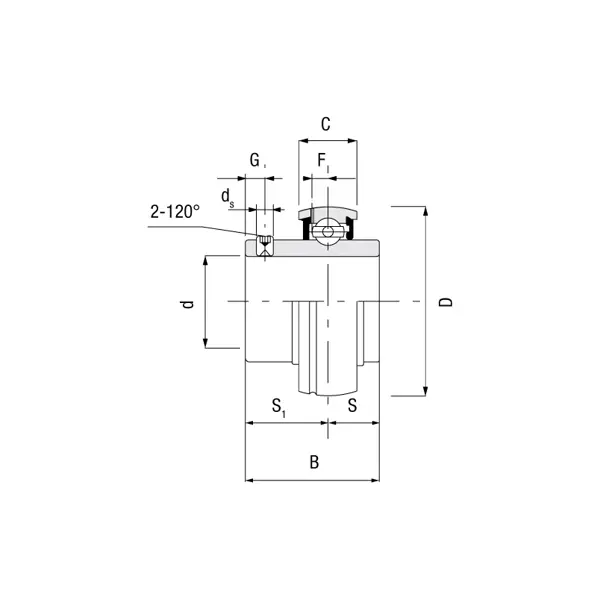

| Item group | Insert bearing |
|---|---|
| Subgroup bearing 1 | Insert bearings |
| Bore diameter d | 15 mm |
| Outside diameter D | 47 mm |
| Width B | 31 mm |
| Width C | 17 mm |
| Thread hole distance G | 5 |
| Lubrication hole distance | 4,2 |
| Designation | UC 202 |
| Basic dynamic load rating | 13600 kn |
| Basic static load rating | 6600 kn |
