Bearing FAG 22313-E1-XL-C3
- Product code: 0000000063015
- Unit of measurement: Piece
- Tariff group: 84823000
- Net weight: 3.564 kg
Best price in the last 30 days: 221,00 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 221,00 €
Direct to factory order
DFO – DAP to your place
| Item group | Bearing |
|---|---|
| Subgroup bearing 1 | Spherical roller |

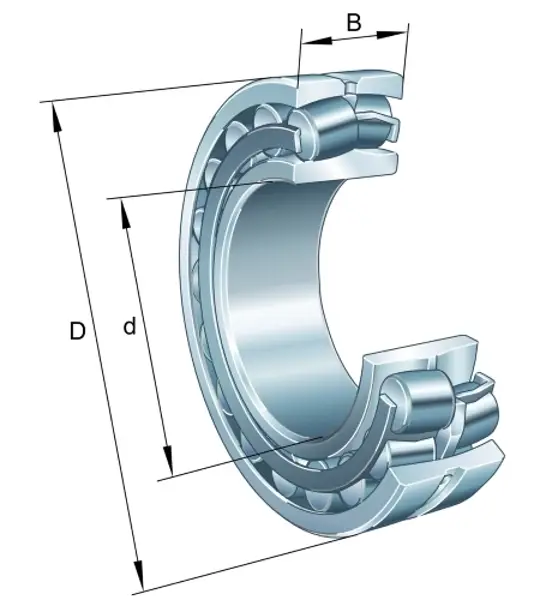

| Bore diameter d | 65 mm |
| Outside diameter D | 140 mm |
| Width B | 48 mm |
| Bore type | Cylindrical |
| Bearing material | Bearing Steel |
| Suffix 1 | E1 |
| Suffix 1 description | Oblikovanje s povečano zmogljivostjo |
| Suffix 2 | XL |
| Suffix 2 description | X-Life |
| Suffix 3 | C3 |
| Suffix 3 description | Večja notranja zračnost od običajne |
| Designation | 22313 |
| Basic dynamic load rating | 357 kn |
| Basic static load rating | 360 kn |
| Designation premium | 22313-E1-XL-C3 |
| System | Metric |
| Limiting speed | 5000 rpm |
| Reference speed | 3800 rpm |
| Oil Seal | Without |
