Bearing FAG 23218E1AK-M-C3
- Product code: 0000000043641
- Unit of measurement: Piece
- Tariff group: 84823000
- Net weight: 4.4 kg
Best price in the last 30 days: 393,36 €
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 393,36 €
Direct to factory order
DFO – DAP to your place
| Item group | Bearing |
|---|---|
| Subgroup bearing 1 | Spherical roller |

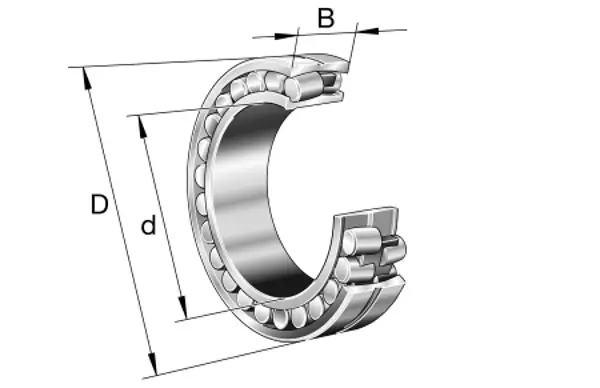

| Bore diameter d | 90 mm |
| Outside diameter D | 160 mm |
| Width B | 52.4 mm |
| Cage material | Brass |
| Bore type | Tapered 1:12 |
| Bearing material | Bearing Steel |
| Suffix 1 | E1 |
| Suffix 1 description | Oblikovanje s povečano zmogljivostjo |
| Suffix 2 | C3 |
| Suffix 2 description | Večja notranja zračnost od običajne |
| Designation | 23218 |
| Basic dynamic load rating | 372 kn |
| Basic static load rating | 440 kn |
| Designation premium | 23218E1AK-M-C3 |
| System | Metric |
| Limiting speed | 3800 rpm |
| Reference speed | 2800 rpm |
| Oil Seal | Without |
