Bearing CODEX 6203 2RS
- Product code: 0000000026338
- Unit of measurement: Kos
- Tariff group: 84821090
- Net weight: 0.062 kg
Best price in the last 30 days: 1,96 €
In stock
Direct to factory order
DFO – DAP to your place
Best price in the last 30 days: 1,96 €
In stock
Direct to factory order
DFO – DAP to your place
| Item group | Bearing |
|---|---|
| Subgroup bearing 1 | Ball |
| Subgroup bearing 2 | Single-row |

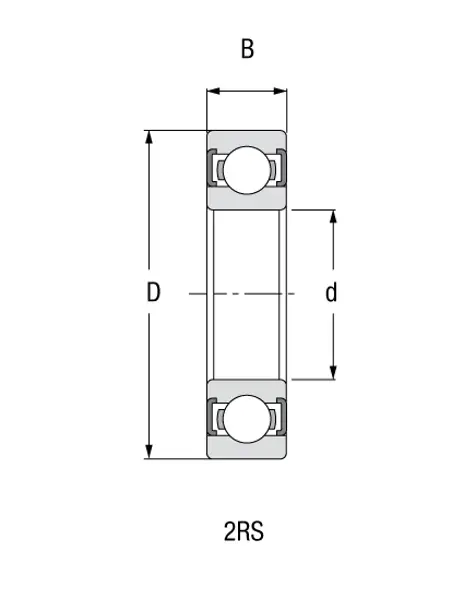

| Bore diameter d | 17 mm |
| Outside diameter D | 40 mm |
| Width B | 12 mm |
| Cage material | Steel |
| Bore type | Cylindrical |
| Bearing material | Bearing Steel |
| Designation | 6203 |
| Basic dynamic load rating | 9.95 kn |
| Basic static load rating | 4.75 kn |
| System | Metric |
| Limiting speed | 24000 rpm |
| Reference speed | 38000 rpm |
| Oil Seal | Rubber Seals At Each Side Of The Bearing |
